Any build structure, it may be Residential, Commercial, retail or Industrial Spaces; Electrical systems are the hidden lifelines of any modern structure, powering everything from lights and fans to heavy machinery and HVAC systems. Any building design, electrical work is often overlooked but critical component: the electrical distribution board (DB).

What is an Electrical Distribution Board?

An electrical distribution board is a control panel that divides electrical power into subsidiary circuits while providing protection through fuses or circuit breakers. It acts as a main power house; from which electricity is safely distributed to various rooms, or appliances. Each circuit is assigned a breaker, allowing power to be isolated in the event of maintenance or electrical faults like, preventing overloads, short circuits, and potential fire hazards.

Numbering the electrical circuit in DB Matters

In any building; labelling and numbering of the distribution board is vital for: Quick fault identification

• Safe maintenance and troubleshooting
• Load balancing and system monitoring
• Compliance with electrical safety codes
• Emergency response readiness

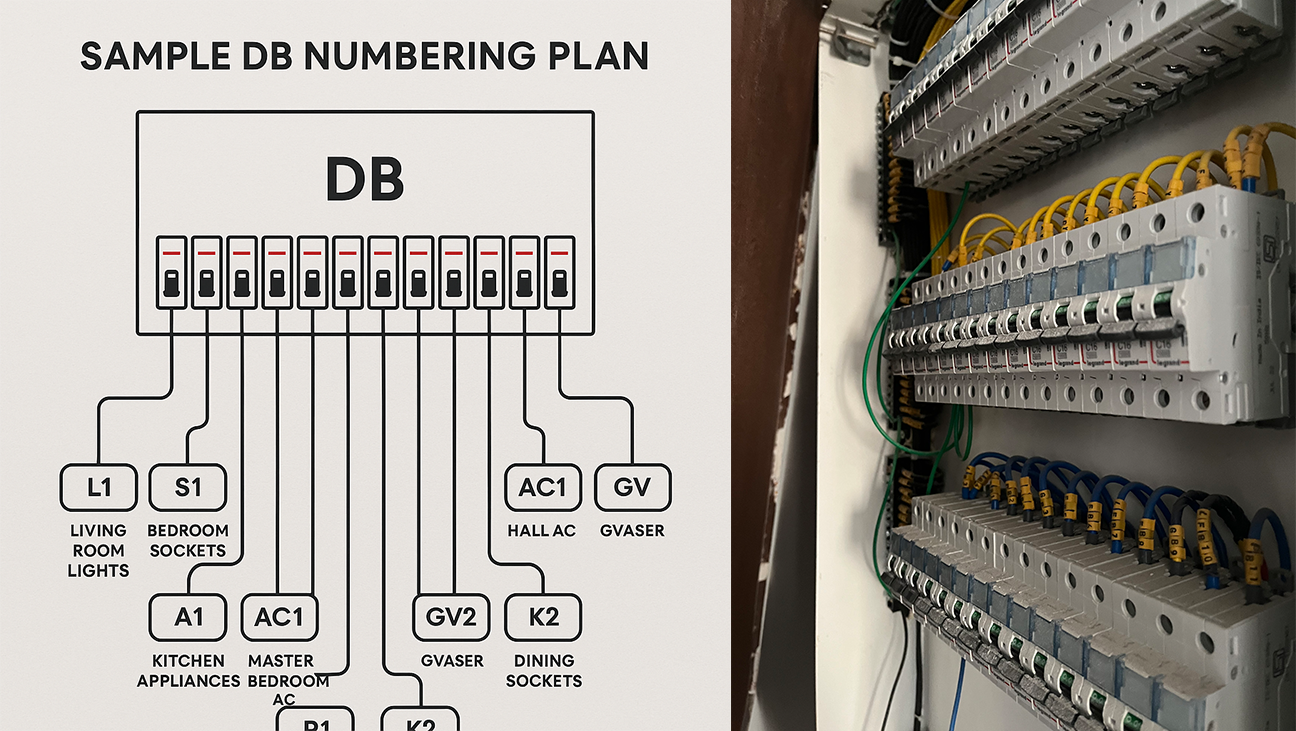

Imagine a technician needing to shut off power to a specific AC unit or lighting system without clear numbering, this becomes guesswork. With proper electrical numbering, each circuit is clearly marked like L1 for Living Room Lights, K2 for Kitchen Socket, AC3 for Bedroom AC, reducing downtime and risk.

list of best practices in electrical work are:

• Label each circuit based on location and appliance type
• Use waterproof, heat-resistant printed labels
• Match circuit numbering with site layout drawings
• Maintain a DB schedule or chart nearby
• Periodically update the DB numbering after renovations or upgrades

Electrical distribution boards may sit in corners or behind locked panels, but their design and organization directly impact the safety, functionality, and efficiency of a building’s power system. Whether you're an architect, contractor, or homeowner; investing in proper DB planning and numbering isn’t optional and it’s essential. all these services drawing are comes under the scope of MEP consultant, who work along with architect.
